Nfc Card Barcode Qr Code Reader Pos Terminal For Bus

NFC UnionPay Support FeliCa Mastercard-PayPass Smart Bus Ticket Validator Device P18-Q

P18-Q

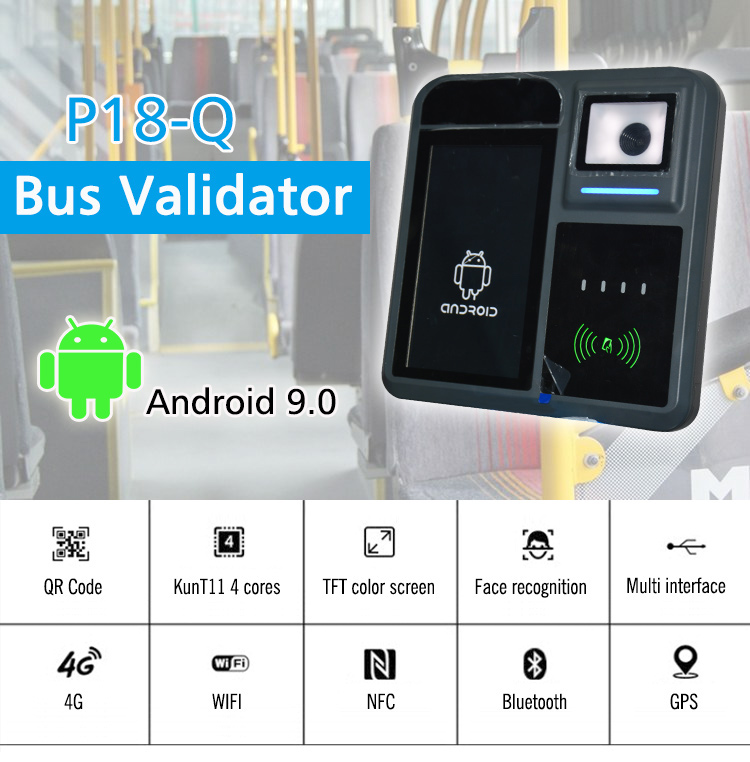

P18-Q is a smart android based bus validator for automatically bus tickets validation and bus fare collection.

Quantity:

Contact Now

add to cart

RFID Contactless Bus Validator With GPS/GPRS for Card Payment P18-Q
RFID Contactless Bus Validator With GPS/GPRS for Card Payment P18-Q
P18-Q is a versatile and robust bus validator featured with android system. It integrates contact-less card reader, QR code reader and LCD display.

Features:
Android 9.0
600×1024 TFT color screen

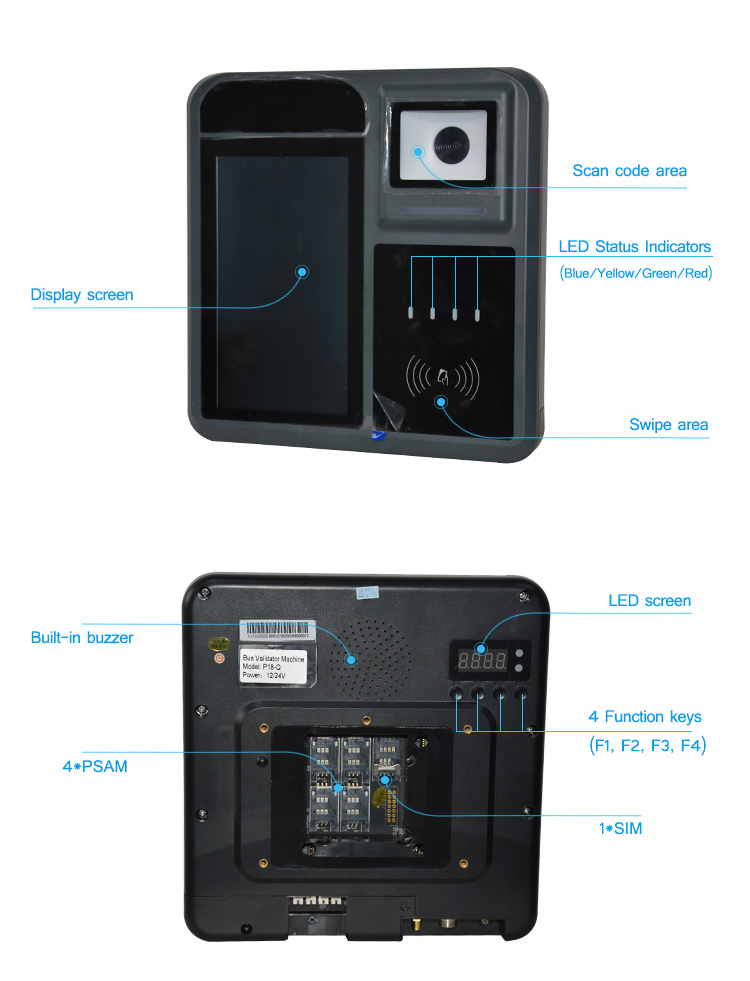

LED Status Indicators
4 LED from left to right blue, yellow, green, red, controllable
2 LED in the back from top to bottom green, red, controllable
4 function keys (F1, F2, F3, F4)
Support power switch
Built-in buzzer
Built-in audio speaker
Contactless smart card interface
Support RS232 Interface
Support Ethernet / USB/USB TypeC Interface
Firmware Upgradeable
Certifications: CE / FCC / CCC / QPBOC L1 / QPBOC L2 / EMV L1/L2 Visa-VCTKS / Mastercard-PayPass / RoHS / IP54

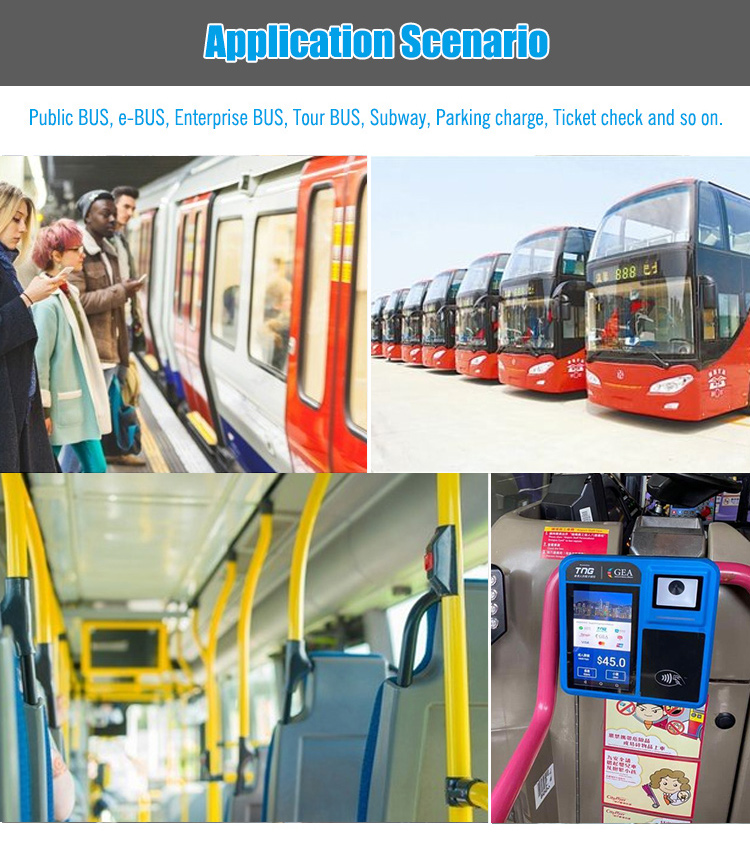

Application scenario: Bus, subway, expressway, station, retail store, payment, canteen, campus

Recommend Products

Physical Specifications
Case Color	Black

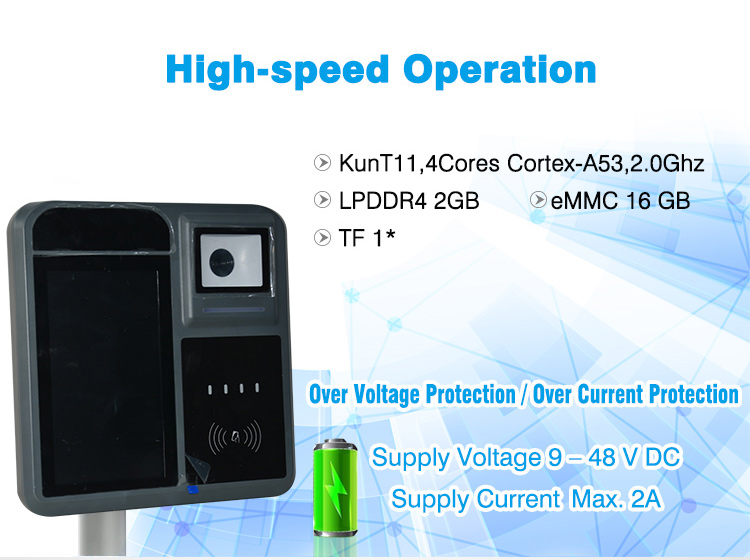

Processor	KunT11,4Cores Cortex-A53,2.0Ghz
Operating System	Android 9.0
Memory	LPDDR4 2GB eMMC 16 GB TF 1*
Power
Supply Voltage	9-48 V DC
Supply Current	Max. 2A
Over Voltage Protection	Supported
Over Current Protection	Supported

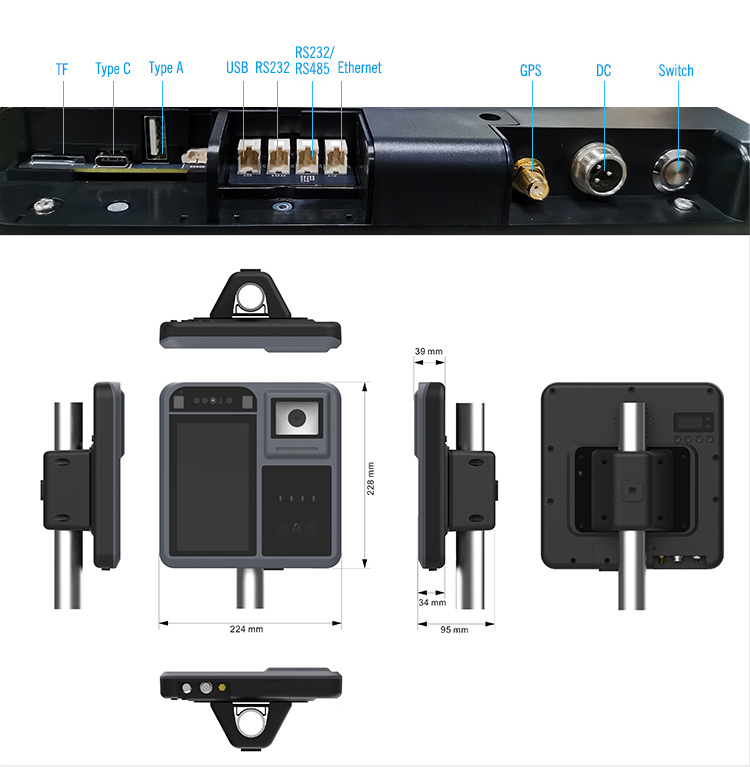

Connectivity
RS232	2*RS232 interface
Ethernet	Built-in 10/100-base-T with RJ45 connector
USB	2 USB 2.0 Host Full Speed
USB Type C	OTG interface
WiFi	IEEE 802.11 b/g/n/ac

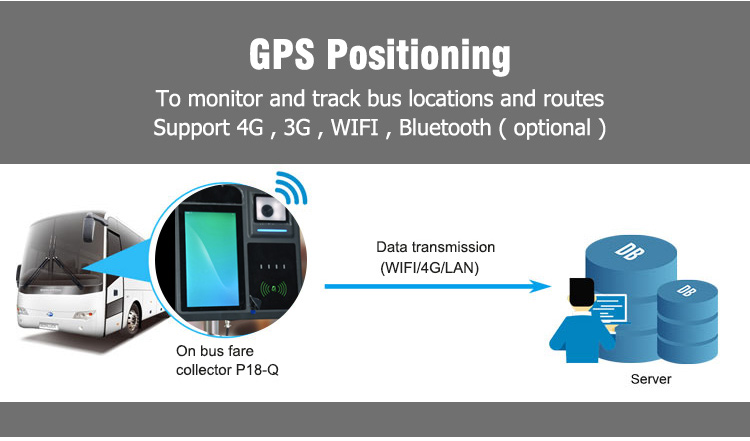

GPS	Supported
Bluetooth (Optional)	BT4.0 + BR/EDR + BLE

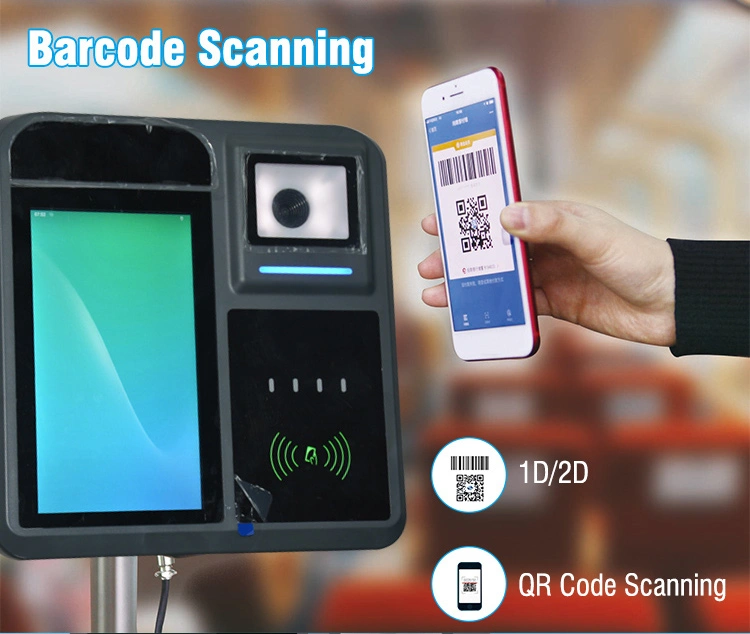

Barcode Scanner	1D Barcode Scanning
	2D Barcode Scanning
	QR Code Scanning

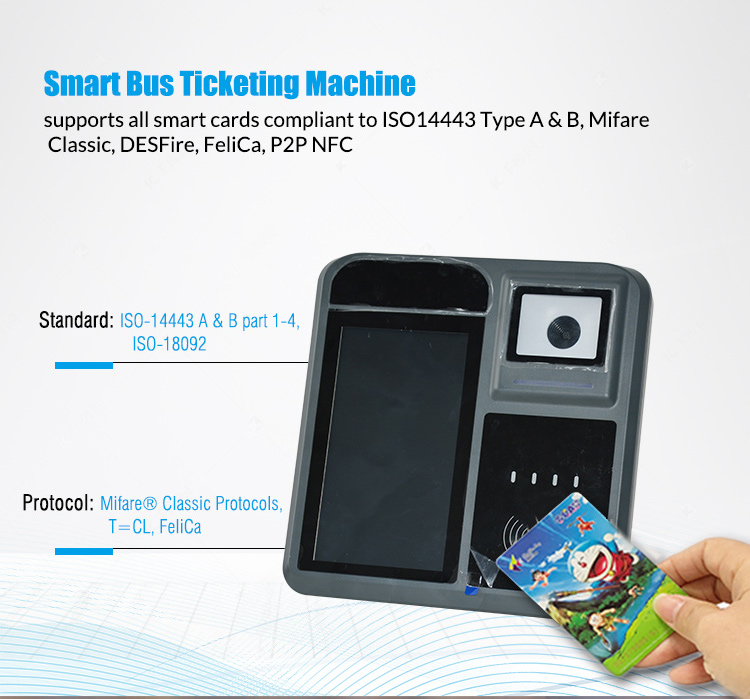

Contactless Smart Card Interface
Standard	ISO-14443 A & B part 1-4
Protocol	Mifare® Classic Protocols, T=CL
Operating Distance	Up to 50 mm
Operating Frequency	13.56 MHz
SAM Card Interface
Number of Slots	4 ID-000 slots
Card Connector Type	Contact
SIM	1
Standard	ISO/IEC 7816 Class A, B (5V, 3V, 1.8V)
Protocol	T=0 or T=1
Firmware Upgradeable through	OTA
Built-in Peripherals

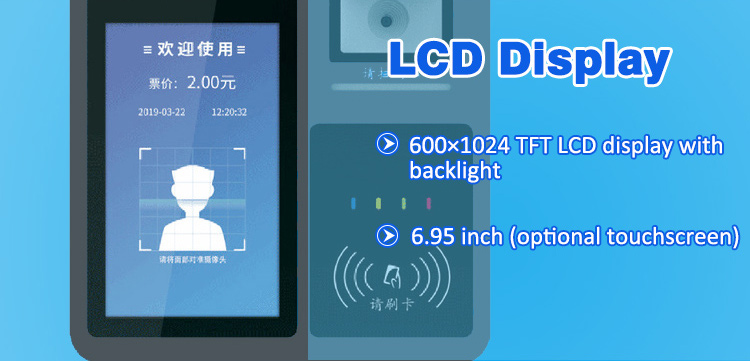

LCD Display	600×1024 TFT LCD display with backlight, 6.95 inch (optional touchscreen)
Speaker	Supported
Buzzer	Supported
LED Status Indicators	4 LEDs for indicating status (from left most: blue, yellow, green, red)
Other Features	Real Time Clock
Work Conditions	Temperature: -40°C~80°C Humidity: 5% to 93%, non-condensing

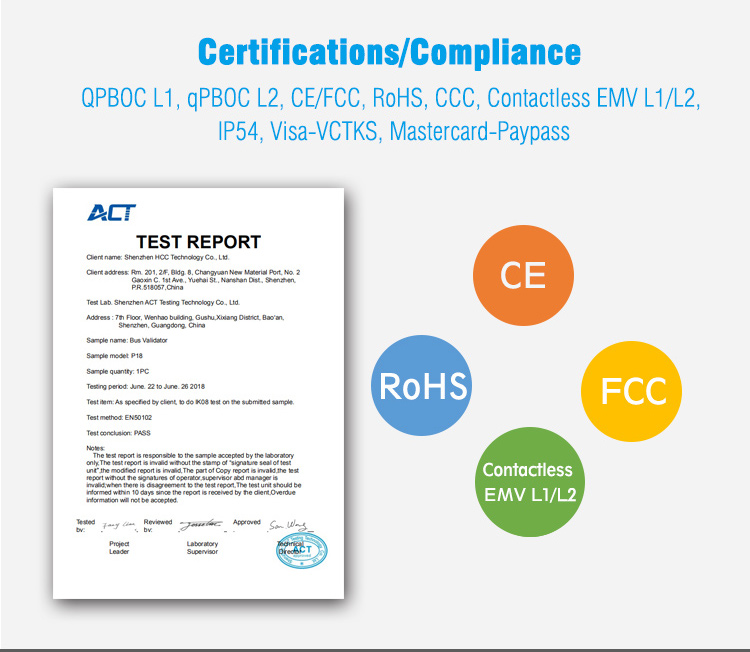

Certifications/Compliance	QPBOC L1, qPBOC L2, CE/FCC, RoHS, CCC, Contactless EMV L1/L2, IP54, Visa-VCTKS, Mastercard-Paypass
