Android 12 Agricultural Transport Vehicles Tablet PC V12R
System Configuration | |
Operating System | Android 12 + Linux Dual-System |
CPU | Standard RK3568, Quad-Core 64-bit Cortex-A55 Processor, with a maximum frequency of up to 2.0GHz. |
GPU | Mali-G52-2EE |
Memory | RAM:4GB (Optional 8GB) ROM:64GB (Optional 128/256GB) |

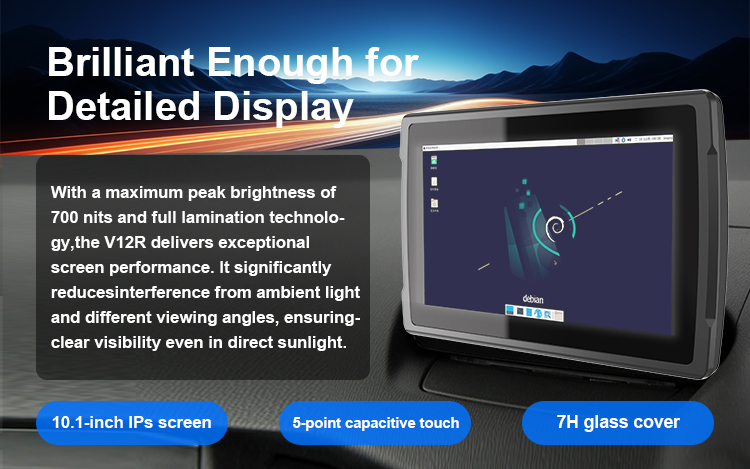

Display | Type: HD Size:10.1-inch 16:10 Resolution:1280*800 IPS Brightness:700cd/m² |
Touch Pannel | Asahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H |
WIFI | Band: WIFI 802.11 (a/b/g/n/ac) Frequency:2.4G + 5.0G (5.1G + 5.8G) Dual-band WIFI Others: Supports AP seamless roaming |
Bluetooth | BT 5.0 isochronous channels feature BLE_125K -104 dBm |
4G (Optional) | LTE Cat 4 WCDMA:B1+5+8 TDD:B38+40+41 FDD:B1+3+5+7+8+20+28 |
GPS | Supports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz) |
Data Radio (Optional) | Frequency range: 410-470MHz |
Structural Parameters | |
Material | Plastic + Metals |

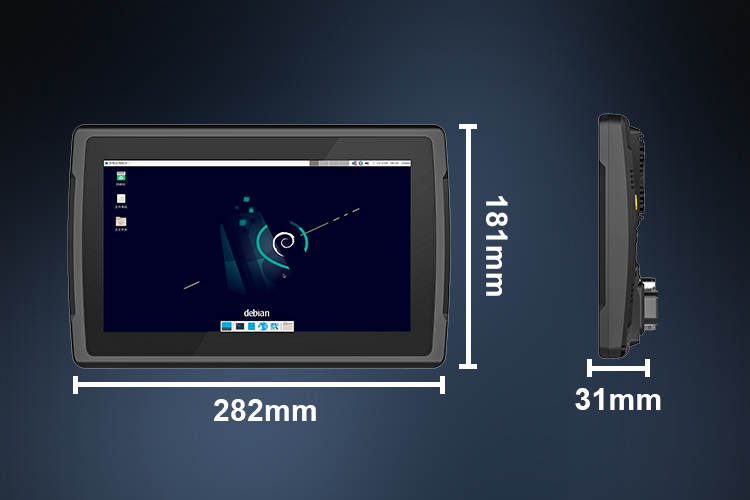

Dimension | 282*181*31mm |
Weight | TBD |
Product Color | Black |
Buttons | Power *1 Customizable * 1 (F1 Key) Customizable * 1 (F2 Key) |
Wide-Voltage Power Supply | 6-36V (DC input, supports ignition detection) |
ACC | Supports delayed power on/off switch |
Speaker | 3W Single Speaker |
Microphone | Single MIC |
RTC | Built in 2032 RTC dry battery |
G-Sensor | Built in |
Functional Modules | |

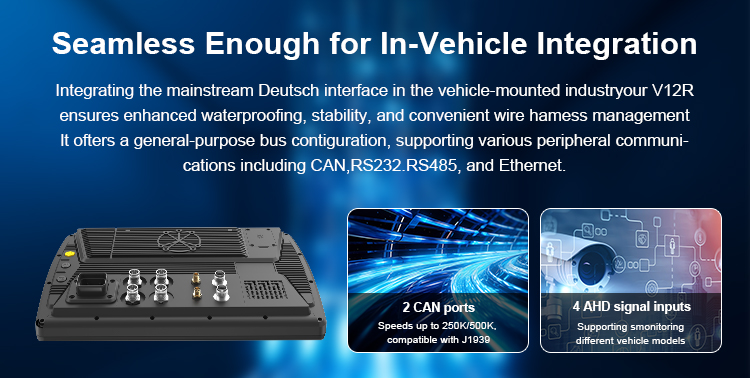

CAN | Supports 2 CAN channels Supports 250K / 500K CAN Supports common agricultural machinery, engineering vehicle protocols such as J1939 |
RTK High Precision Locating (UM 982) (Optional) | |
Dual-antenna positioning and orientation Dual-antenna mode supports BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/,E5a/E5b, QZSS L1/L2/L5, SBAS | |
Data Radio (Optional) | Frequency range: 410-470MHz |
AHD Multi-Channel Cameras | Supports up to 4 AHD cameras |
Interfaces | |
SIM Card Slot | MICRO-SIM* 1 |
TF Card Slot | MICRO-SIM* 1 |
Standard USB-A Port / Data Transfer | USB 2.0 * 1, USB-A Port, HOST Data Transfer |
Video Input | AHD*4,GX12 4-pin connector * 4 |
Deutsch Interfaces | 26-PIN Deutsch Interfaces (Optional in the Solution) |

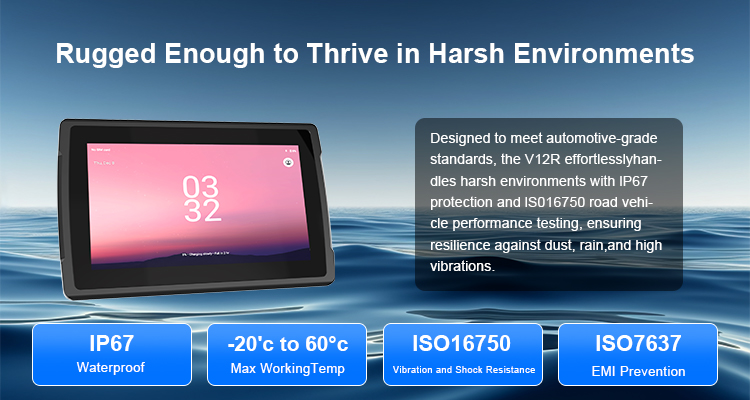

Rugged Features | Working temperature: -20 °C to 60 °C |
Storage temperature: -30 °C to 85 °C | |
±6kV contact discharge,±10kV air discharge (Optional: ±8kV contact discharge, ±12kV air discharge) | |
Humidity: 95% Non-Condensing | |
Certification | IP67, CE, CCC, MIL-STD-810H, ISO7637, ISO16750 |
Optional Accessories | 26-PIN Deutsch Interface Functional Bus (Customized according to the solution) |
Bracket (RAM 38 * 30mm ball head) | |
ACC Power Cable | |
DC Conversion Cable | |
Power Adapter 12V4A DC φ4.0 adapter | |
GPS Vehicle Mushroom Antenna Active GPS mushroom antenna, 3-meter cable, gain of 28dBi ± 2dBi | |
4G External Suction Cup Antenna | |
Data Radio,External Suction Cup Antenna | |
RTK Mushroom Antenna (TNC Connector) | |
