Basic Characteristics
|
|
OS
|
Safedroid OS (based on Android 14.0, Android 11 optional)
|
|
CPU
|
Quad-Core ARM Cortex-A53 2.0GHz
|
|
ROM
|
32GB ROM EMMC
|
|
RAM
|
2GB RAM LPDDR
|
|
Display
|
5.0 inch TFT IPS LCD, resolution 1280 * 720
|
|
Panel
|
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
|
|

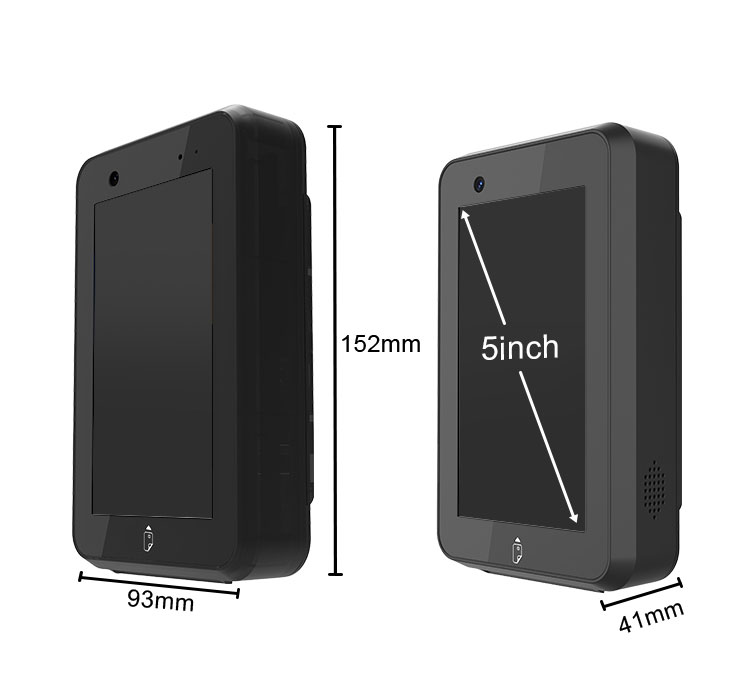

Dimensions
|
152 * 93 * 41 mm
|
|
Weight
|
418g
|
|
Keys
|
2 * Physical keys
|
|
Input
|
Chinese / English, and supports handwriting and soft keyboard
|
|
Interfaces
|
|
Micro SD Card Slot
|
1 Pcs
|
|
SIM Card Slot
|
2 Pcs Micro SIM
|
|
PSAM Card Slot
|
4 Pcs Conforms to ISO7816 standard
|
|

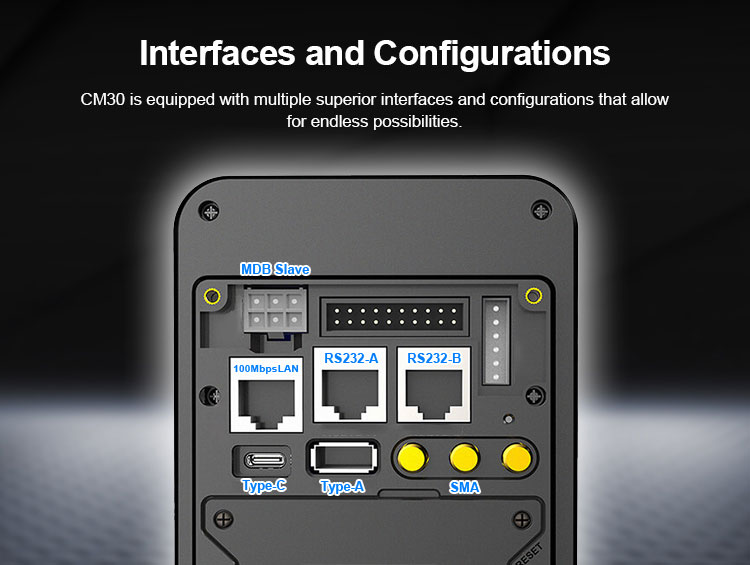

Peripheral Ports
|
2 * RS232
1 * LAN, 100Mbps
1 * USB Type A, USB2.0 HOST
1 * USB Type C, USB2.0
1 * MDB Master
3 * SMA, External antenna
|
|
Power
|
|
DC
|
12v-48v DC (via MDB Slave / RS232)
|
|
Radio Communication
|
|
WIFI
|
IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz
|
|
Bluetooth
|
BT 5.0 and earlier
|
|
Satellite Positioning
|
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
|
|
4G
|
European version(Default):
FDD-LTE: B1/B3/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
Global version(Optional):
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
TDD-LTE: B38/B40/B41
|
|
3G
|
European version(Default):
WCDMA: B1/B8
Global version(Optional):
WCDMA: B1/B2/B4/B5/B8
|
|
2G
|
European version(Default):
GSM/GPRS/EDGE: 900/1800MHZ
Global version(Optional):
GSM/GPRS/EDGE: 850/900/1800/1900MHz
|
|
Environment
|
|
Operating Temperature
|
-20°C to 60°C
|
|
Storage Temperature
|
-30°C to 70°C
|
|
Humidity
|
5% to 95% Relative Humidity, Non-Condensing
|
|
Payment
|
|
|
Contactless Card Reader
|
Supports 14443A / 14443B
|
|
Smart Card Reader
|
Smart Card Reader
|
|
Certification
|
|
Electromagnetic
|
IP/IK Certified
CE, Rohs, FCC, GMS
EMV, PCI, PAYPASS, PAYWAVE, AMEX(optional)
|
|
Expansion and peripherals
|
|
Camera front
|
5MP
|
|
Audio
|
Speaker, Mic
|
|
Physical Protection
|
|
IP/IK Certified
|
IP54, IK08
|
