| Performance |
| CPU |
Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor |
| RAM+ROM |
2GB+16GB Supports up to 3GB+32GB |
| Expand memory |
Micro SD(TF) Supports up to 128GB |
| System |
Android 9 |
| Data communication |
| WLAN |
Dual-band 2.4GHz / 5GHz,
Supporting IEEE 802 a/b/g/n/ac protocol
|
WWAN
|
2G:GSM (850/900/1800/1900mhz) |
| 3G:WCDMA (850/900/1900/2100mhz) |
| 4G:FDD:B1/B3/B4/B7/B8/B12/B20 |
| TDD:B38/B39/B40/B41 |
| Bluetooth |
Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS
Transmission distance 5-10 meters
|
| GNSS |
Support Gps, Galileo, Glonass, Beidou |
| Data collection |
| Barcodescanning(Optional) |
|
2D Imagerscanner
|
Newland EM3090
Honeywell N3603
Honeywell N6603
|
|
2D Symbologies
|
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,Maxicode,Hanxin Code,etc.
|

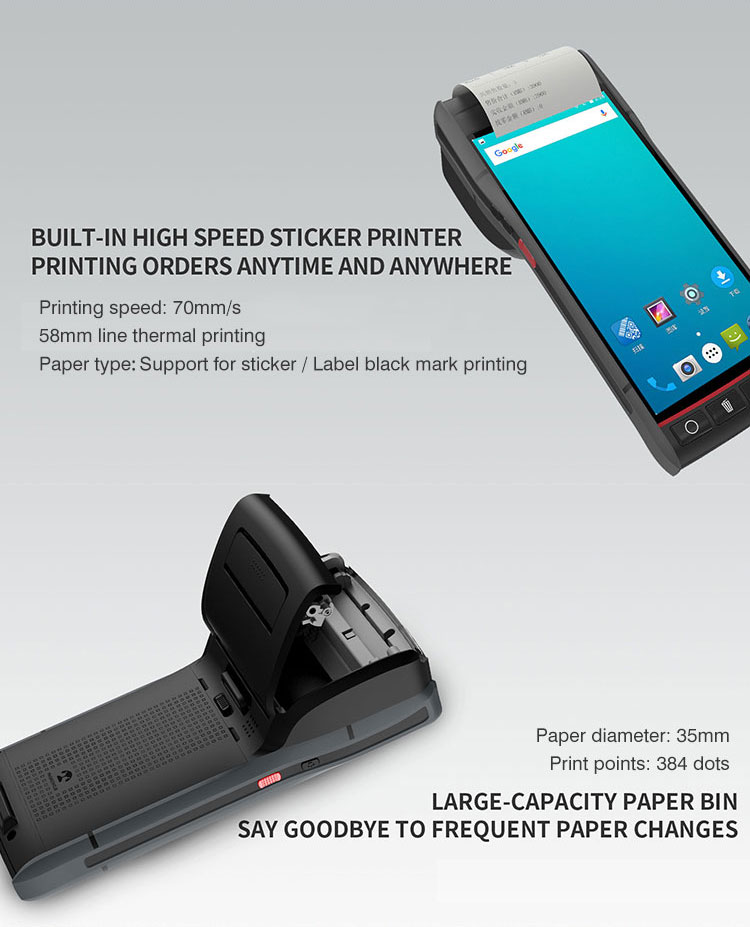

| Thermal sticker printer |
| Printing speed |
70mm/s |
| Print points |
384 dots |
| Paper width |
58mm |
| Paper diameter |
35mm |
| Paper type |
Support for Sticker / label Black mark printing |

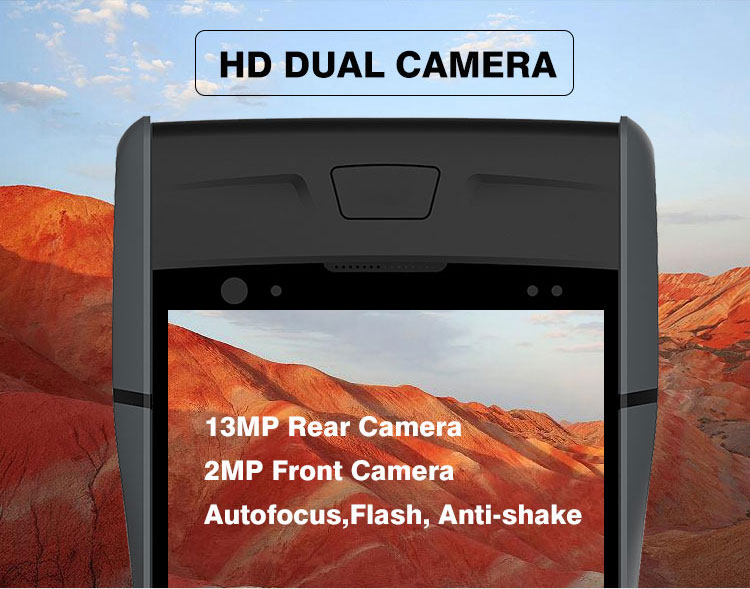

| Camera |
| Rear camera |
13MP HD camera,Support auto focus,Flash, Anti-shake, Macro shooting
|

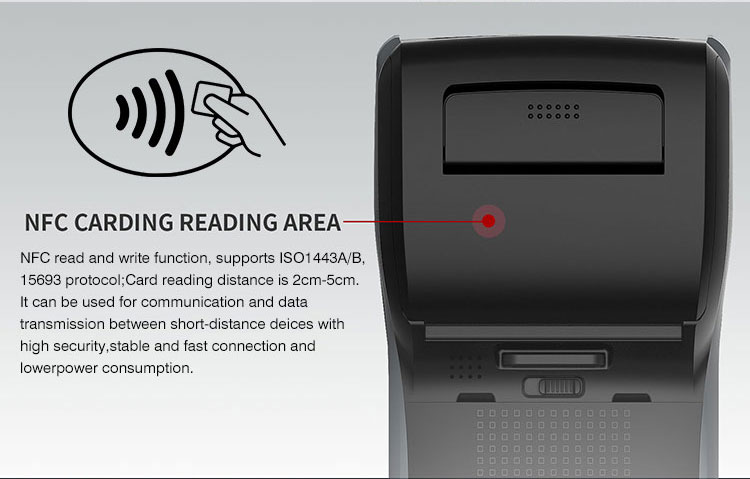

| NFC (optional) |
| Frequency |
13.56MHz |
| Protocol |
Support ISO14443A/B, 15693 agreement |
| Distance |
2cm-5cm |
| Language/input method |
| Input |
English,Pinyin,Five strokes,Handwriting input,Support soft keypad |
| Language |
Language packs in Simplified Chinese,Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
|
| Physical parameter |
| Dimensions |
177mm×72mm×(23.7-48.8)mm |
| Weight |
＜500g(Depends on device function configuration）
|

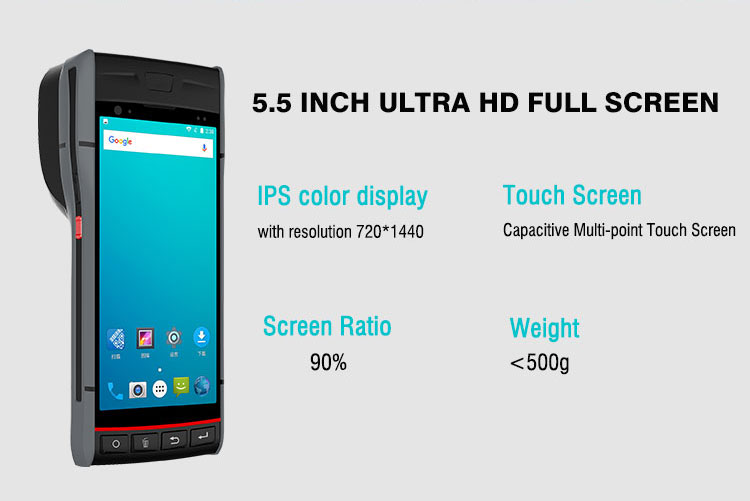

| Display |
5.5 inch IPS color display with resolution 720*1440 |
| TP |
Corning gorilla glass, Supports multi-touch
Supported gloves and wet hands
|

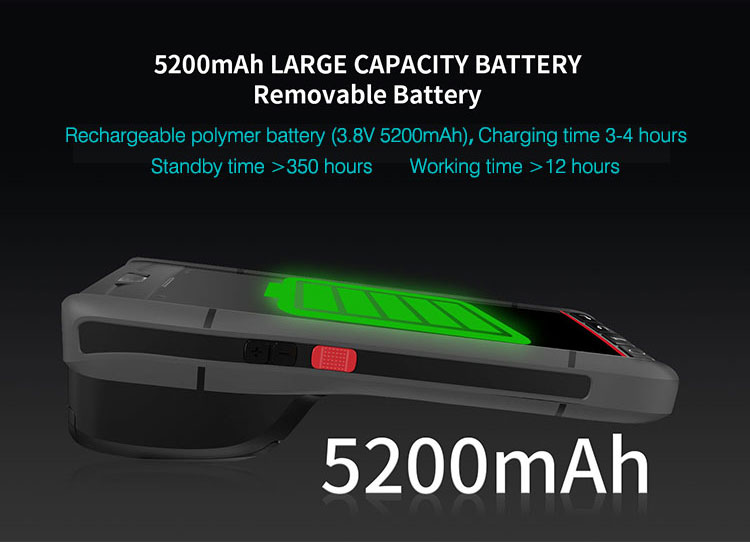

Battery capacity
|
Rechargeable polymer battery (3.8V5200mAh) removable |
| Standby time >350 hours |
| Working time > 12 hours |
|
Charging time 3-4H, Using standard power adapter and data cable
|
|

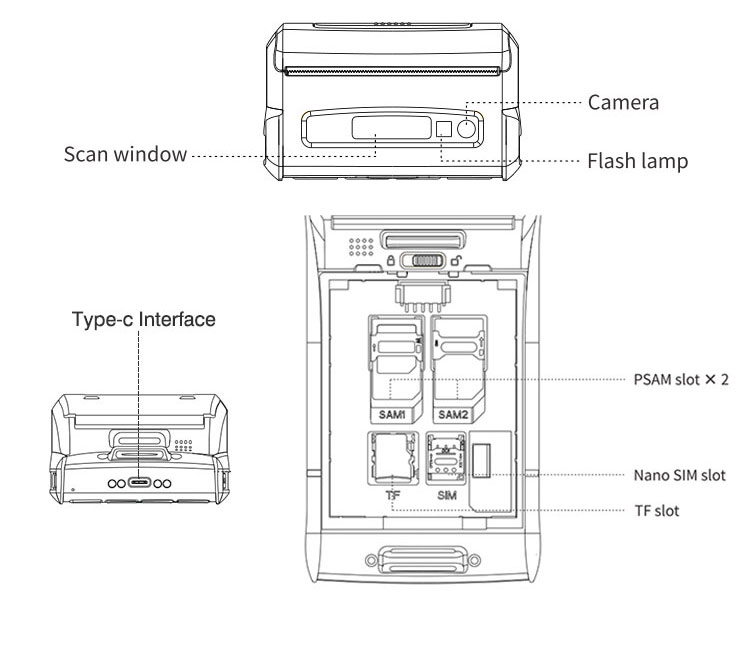

Expansion Card slot
|
PSAM x 2,Nano SIM card x 1 , TF card × 1 |
| Communication interface |
Type-C USB x 1, OTG |
| Audio |
Speaker (mono), Microphone, Earpiece |

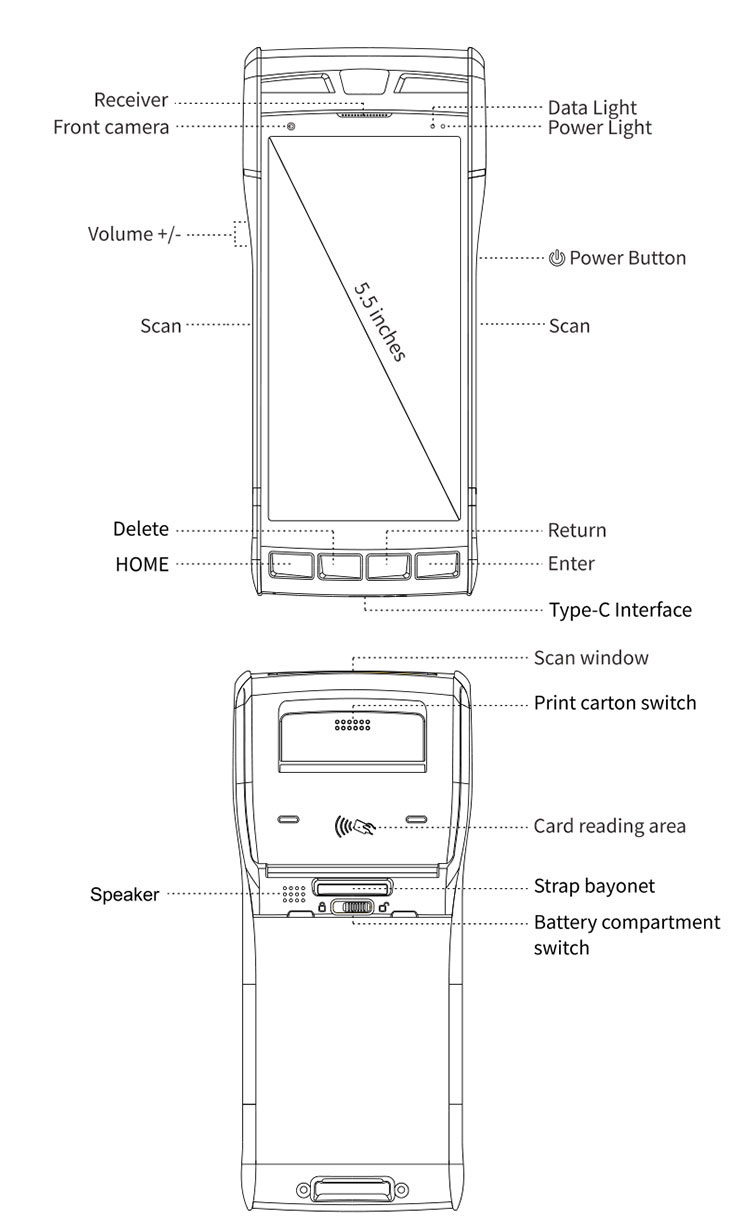

| Keypad |
Silicone button: Power button, Volume +/- button,Scan button × 2
|
| Sensors |
Gravity sensor, Light sensor, Proximity sensor,Vibration motor
|
| User environment |
| Operating temperature |
-20℃ - 55℃ |
| Storage temperature |
-40℃ - 70℃ |
| Environment humidity |
5%RH--95%RH(no condensation) |
| Drop specification |
6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature
|
| Rolling test |
500×0.5m rolling for 6 sides |
| Sealing |
IP54 |
| Accessories |
Adapter, Data cable, Protective film,Instruction manual
|
