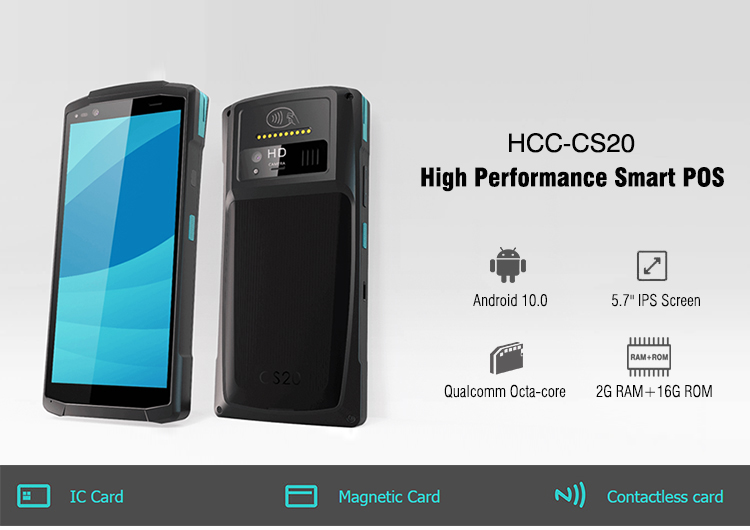

Basic Characteristics
|
OS |
Safedroid OS (based on Android 10.0) |
| CPU |
Qualcomm Octa-Core ARM Cortex-A53 1.8GHz |
| ROM |
16GB ROM EMMC |
| RAM |
2G RAM LPDDR3 |
| Display |
5.7 inch TFT IPS LCD, resolution 720*1440 |
| Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |

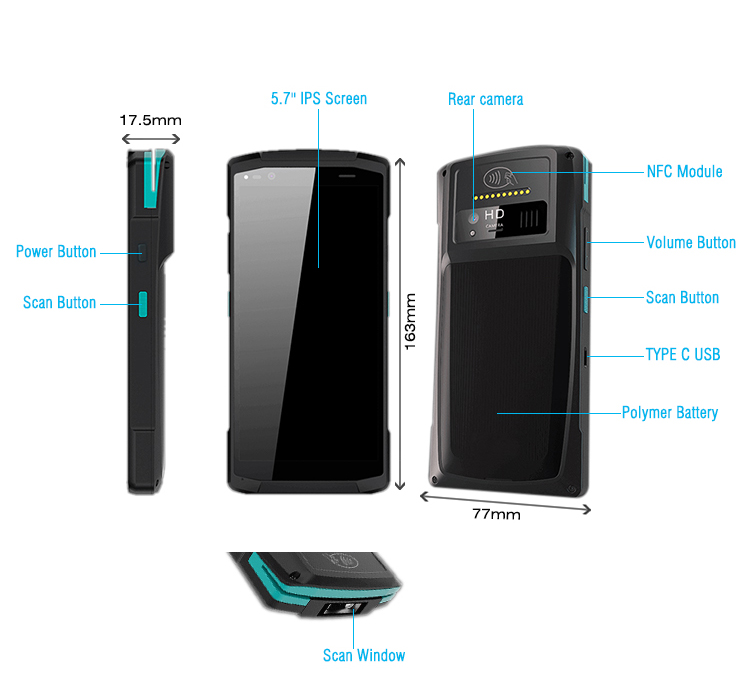

| Dimensions |
163mmX77mmX17.5mm (max 21.8mm) |
| Weight |
300g(Battery included) |
| Keys |
Physical keys: power on/off, Volume + /-, Scan1/ Scan2 |
| Input |
Chinese/English, and supports handwriting and soft keyboard |

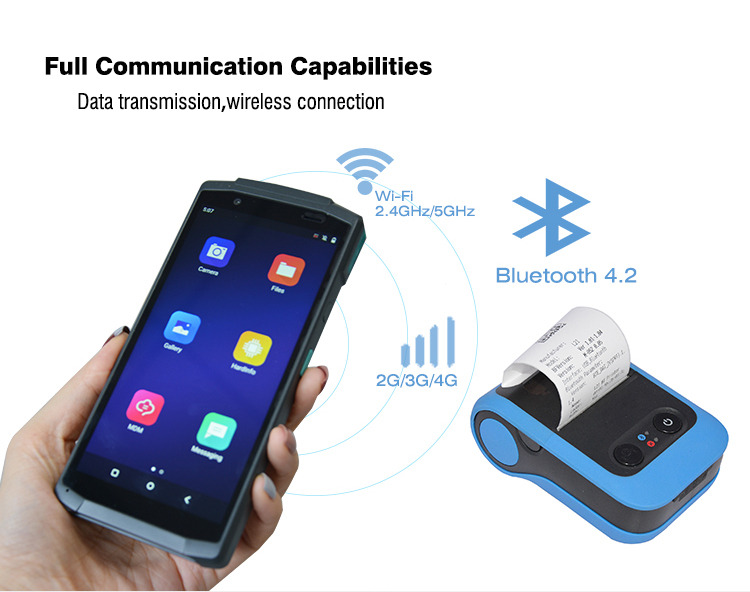

Radio Communication
|
WIFI |
IEEE 802.11 b/a/g/n,support dual Band 2.4GHZ and 5GHZ |
| Bluetooth |
BT 4.2 LE and earlier |
| 4G |
European version(Default):
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B39/B40/B41
American version(Optional):
FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26
TDD-LTE: B41
|
| 3G |
European version(Default):
WCDMA: B1/B2/B5/B8
TD-SCDMA: B34/B39,
CDMA 1x/EVDO: BC0
American version(Optional):
WCDMA: B2/B4/B5,
CDMA 1X/EVDO: BC1
|
| 2G |
GSM/GPRS/EDGE: 850/900/1800/1900MHZ |

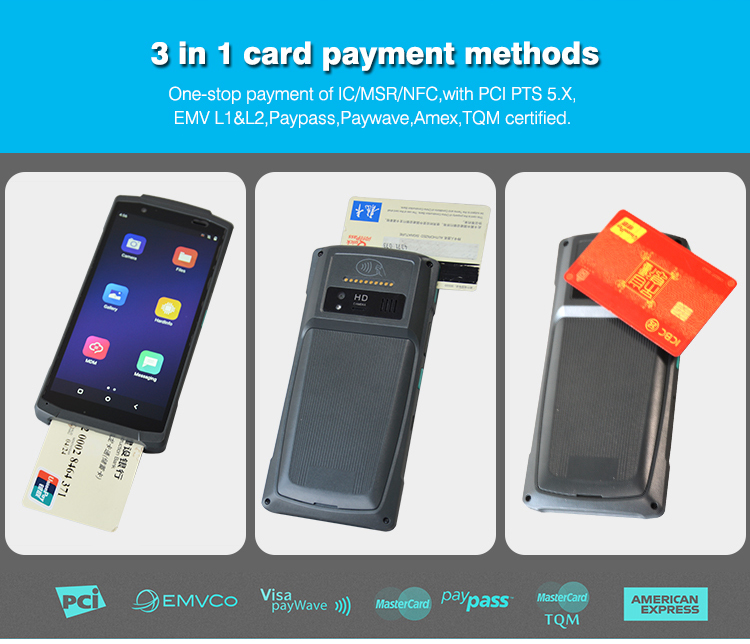

Payment
|
Magcard reader |
Supports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
|
| Smart Card reader |
Supports ISO7816 standard |
| Contactless Card reader |
Supports 14443A / 14443B |

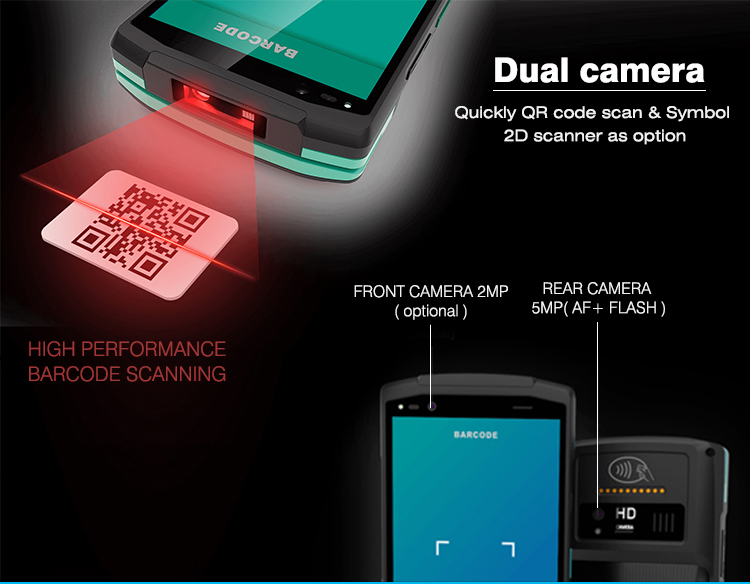

| Camera |
5MP camera with LED flash and auto-focus function |
| Satellite Positioning |
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo |
| NFC |
13.56MHZ |
| Audio |
Speaker, Microphone |
Interfaces
|
Micro SD Card Slot |
1 PCS support up to 128GB |
| SIM Card Slot |
1 PCS MICRO SIM |
| PSAM Card Slot |
2 PCS Conforms to ISO7816 standard |
| USB Port |
1PCS TYPE C USB |
Power
|

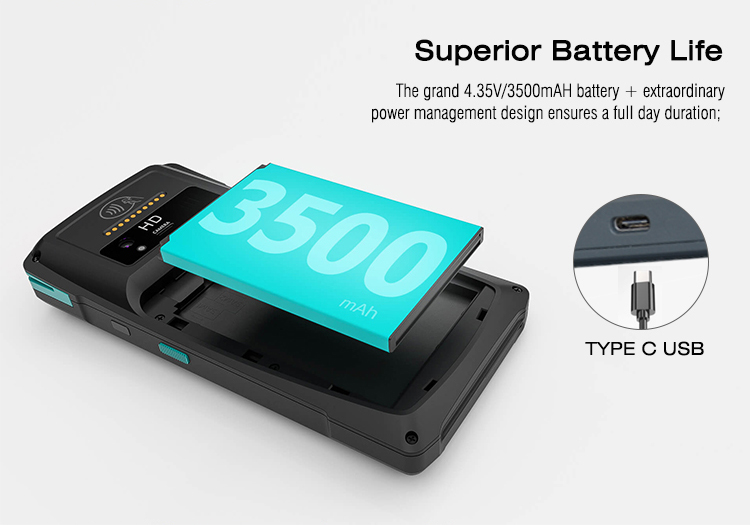

Battery |
Li-ion battery, 4.35V/3500mAH |
| Charging Port |
Type C USB Port, 5V DC/2A |
Environment
|
Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Humidity |
5% to 95% Relative Humidity, Non-Condensing |
Certification
|
Electromagnetic |
CE, Rohs, FCC, BIS, TQM |
| Payment |
PCI PTS 5.X, EMV L1&L2, Paypass, Paywave |
Optional
|
ESIM Card |
Support |
| Front camera |
2 Megapixel Fixed Focal Camera |
| Barcode Scanner |
Symbol 4710 2D Image Engine, Support 1D and 2D symbologies |
